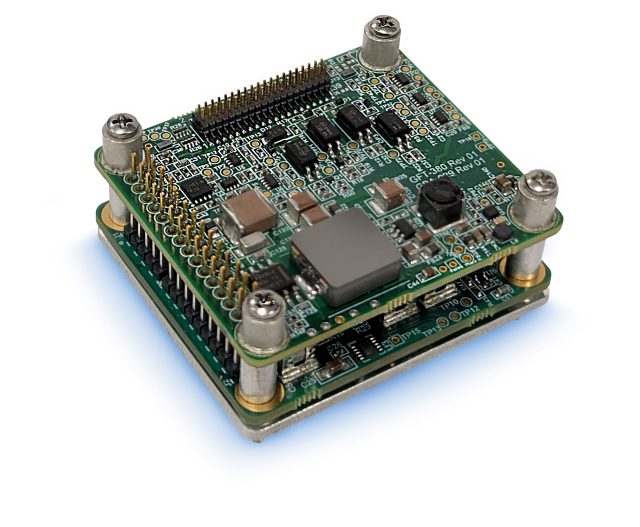

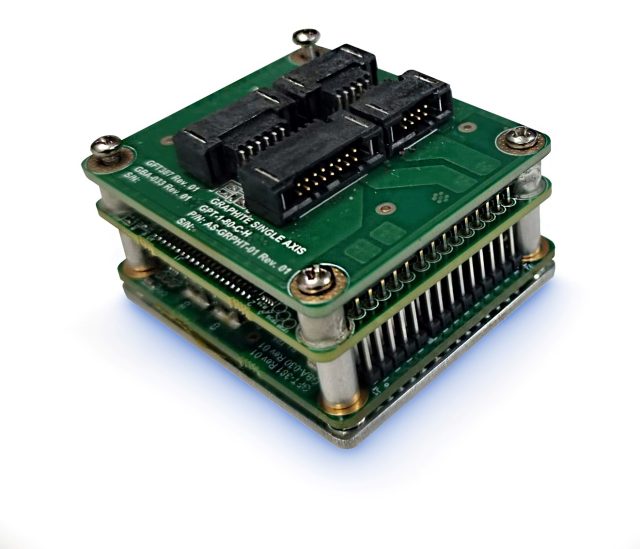

Graphite

A family of high power density, compact and rugged drives for small to medium BLDC, DC and Step motors. An ideal combination of advanced servo control functions, quality and economical cost.

All drives and power systems include and are managed by GFTuner software tools. Implementation of GFT-Servo allows advanced and complex control schemes, including ‘Gain Scheduling’ for instant handling of changing system dynamics, and Automatic Transfer Function identification, including uncertainty. The SW tool includes also built in integration and debugging functions.

Robotics

Medical Devices

Defense

Aeronautics

Super compact footprint

High power to size ratio

Advanced servo control functions

No. of Axes

Motor Supply [Vdc]

12 - 80

Current Cont./Peak [Arms]

15 / 22

Output Power (per axis) [KW]

0.9

Motor Types

BLDC, Brushed DC and Stepper

Feedback

Digital Incremental, Sin-Cos, Absolute, Hall

I/O

Up to 3 Digital inputs and outputs

Dim. [mm³]

47 x 41 x 34

Weight [gr.]

User manual

Application notes

Accessories

Dtasheet

Download matrix
